Vibratory compactor
Vibratory compactor

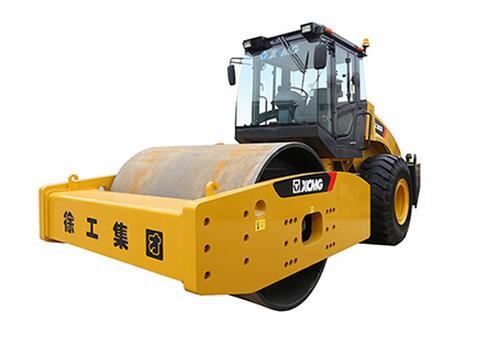

XS303
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| item | Unit | Parameters | |||
| weight | Maximum working weight | (kg) | 30000 | ||
| The front wheel distribution weight | (kg) | 18000 | |||
| The rear wheel distribution weight | (kg) | 12000 | |||
| engine | Model | BF6M1013-24T3R | |||
| rated power | (kW) | 179 | |||
| rated speed | (r/min) | 2200 | |||
| compaction capacity | Static linear load | (N/cm) | 845 | ||
| vibrational frequency | high frequency | (Hz) | 33 | ||
| Low frequency | (Hz) | 27 | |||
| Nominal Vibration | Large (low frequency) | (mm) | 2 | ||
| Small (high frequency) | (mm) | 1 | |||
| Vibration force | Large (low frequency) | (kN) | 520 | ||
| Small (high frequency) | (kN) | 390 | |||
| Driving capacity | speed | Ⅰ | (km/h) | 0～4.2 | |
| Ⅱ | (km/h) | 0～6 | |||
| Ⅲ | (km/h) | 0～6.5 | |||
| Ⅳ | (km/h) | 0～10 | |||
| Outside the minimum turning radius | (mm) | 6964 | |||
| Theoretical gradeability | (%) | 40 | |||
| steering angle | (°) | ±33 | |||
| oscillating angle | (°) | ±10 | |||
| size | complete machine size | length | (mm) | 6877 | |
| width | (mm) | 2480 | |||
| height | (mm) | 3330 | |||
| wheel base | (mm) | 3460 | |||
