Asphalt paver
Asphalt paver

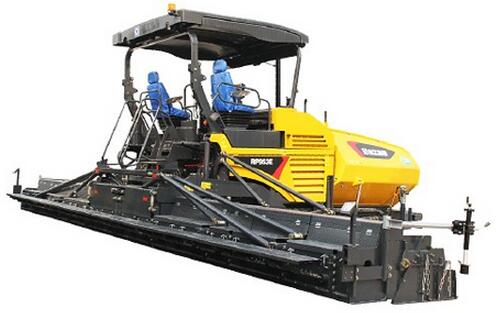

RP953E
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | Unit | Parameters | Note: |
| M250DG | |||
| Basic paving width | m | 2.5 | |
| Max. paving width | m | 10.5 | |
| Max. paving thickness | mm | 400/500 | |
| Paving speed | m/min | 0～18 | |
| Travel speed | km/h | 0～3.0 | |
| Theoretical Productivity | t/h | 900 | |
| Hopper Capacity | t | 15 | |
| Gradeability | ％ | 20 | |
| Pavement evenness | mm/3m | 1.2 | |
| Transverse levelling accuracy | % | ±0.02 | |
| Centre crown ratio | % | -1～+4 | |
| Engine power | kW | 162（SHANGCHAI） | standard |
| 159（DACHAI） | optional | ||
| Engine speed | r/min | 2000 | |
| Distributor speed | r/min | 0～90 | |
| Conveyor speed | m/min | 0～24 | |
| Vibrator speed | r/min | 0～1500 | |
| Vibrator amplitude | mm | Main :5 | twin Vibrator |
| Auxiliary :0，3，6，9，12 | |||
| Screed Heating | / | gas heating | |
| Dimensions | mm | 6610×2600×3950 | |
| Weight | t | 22～30 | |
| Conveyor&distributor materia level control | / | automatic ultrasonic sensor | |
| Automatic levelling control | / | Analog leveling instrument |
