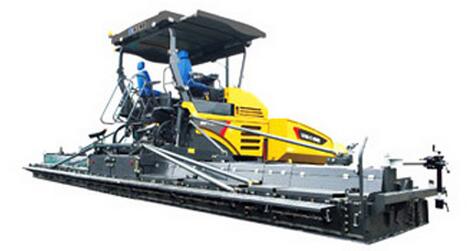

Asphalt paver
Asphalt paver
RP903E
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | Unit | Parameters | |
| E600D | E600T | ||
| Basic paving width | m | 3 | |
| Max. paving width | m | 9 | |
| Max. paving thickness | mm | 300 | |
| Paving speed | m/min | 0～16 | |
| Travel speed | km/h | 0～2.6 | |
| Theoretical Productivity | t/h | 800 | |
| Hopper Capacity | t | 15 | |
| Gradeability | ％ | 20 | |
| Pavement evenness | mm/3m | 1.2 | |
| Transverse levelling accuracy | % | ±0.02 | |
| Centre crown ratio | % | -1～+3 | -1～+4 |
| Engine power | kW | 162 | |
| Engine speed | r/min | 2000 | |
| Distributor speed | r/min | 0～84 | |
| Conveyor speed | m/min | 0～22 | |
| Vibrator speed | r/min | 0～1400 | 0～1800 |
| Vibrator amplitude | mm | main : 5 | main 4 |
| auxiliary : 0，5，10 | |||
| Screed Heating | / | electrical heating | |
| Weight | mm | 7150×3000×3950 | |
| Dimension | t | 24.3～27.2 | |
| Conveyor materia level control | / | automatic ultrasonic sensor | |
| Distributor materia level control | / | automatic ultrasonic sensor | |
| Automatic levelling control | / | analog leveling instrument | |
