Asphalt paver
Asphalt paver

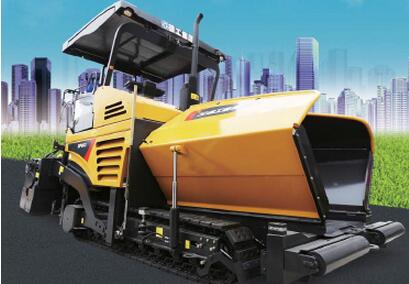

RP603
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | Parameters ( Screed model E475T) |
| Basic paving width | m | 2.5 |
| Max. paving width | m | 6 |
| Max. paving thickness | mm | 300 |
| Paving speed | m/min | 0～20 |
| Travel speed | km/h | 0～3.0 |
| Theoretical Productivity | t/h | 400 |
| Hopper Capacity | t | 14 |
| Gradeability | ％ | 20 |
| Pavement evenness | mm/3m | ≤3 |
| Transverse levelling accuracy | % | ±0.02 |
| Centre crown ratio | % | 0～+3 |
| Engine model | kW | 128 |
| Engine power | r/min | 2000 |
| Engine Speed | r/min | 0～80 |
| Conveyor speed | m/min | 0～25 |
| Vibrator speed | r/min | 0～1500 |
| Vibrator amplitude | mm | 4 |
| Dimensions(LxWxH)) | mm | 6680×2500×4000 |
| Weight | t | 18.5～19 |
| Diesel tank capacity | L | 290 |
| oil tank capacity | L | 300 |
