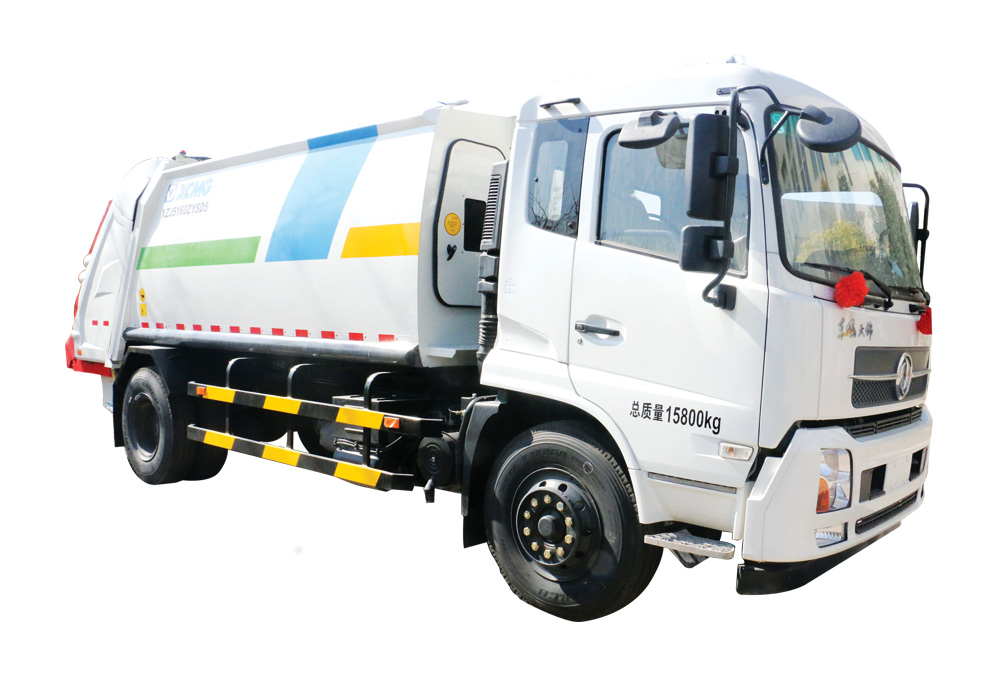

Garbage copressing truck
Garbage copressing truck
XZJ5160ZYSH5
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | parameter |
| Vehicle parameters | - | HFC1161P3N1A40V |
| Chassis models | ||
| Engine type | - | YC6J190N-52，YC6J210N-52，CA6SF2-19E5N |
| tonnage | (T) | 8 |
| Length | (mm) | 8170（Great device），8375（Rolling barrel ），8520（bucket） |
| Wideth | (mm) | 2495 |
| Height | (mm) | 3070 |
| Approach Angle/Angle of departure | (°) | 18/14 |
| Maximum weight | (kg) | 15600 |
| Vehicle servicing weight | (kg) | 9475（Great device），9820（Rolling barrel ），9840（bucket） |
| Rated load | (kg) | 5930（Great device），5585（Rolling barrel ），5565（bucket） |
| Carriage Volume | (m³) | 12.5 |
| Fill in the feeder volume | (m³) | 1.75 |
| Drain tank capacity | (L) | 350 |
| Deputy drain tank capacity | (L) | 228 |
| Bucket Capacity | (L) | 1400 |
| ground clearance | (mm) | 1040 |
| Wideth | (mm) | 1680 |
| Height | (mm) | 900 |
| The cycle time of loading | (s) | 16～18 |
| The tailgate ascending Angle | (°) | ～95° |
| Rated hydraulic pressure | (MPa) | 19.6 |
| Discharging time | (s) | ≤25 |
| The double barrel dumping Angle | (°) | ≥45° |
| Loader lift time | (s) | 13 |
| Max.shift force | (kN) | 226 |
| Max.broken compressive force | (kN) | 136 |
| Compression ratio | - | 1:3 |
| Living garbage compression density | (T/m³) | 0.7~0.8 |
